SMD 5050 LED Light Waterproof , Outdoor Recessed Lighting Dimmable 1.8W / 2W
Quick Details
1. Power:1.8W,2W
2. Voltage:AC100V-240V
3. Size:160mm x 160mm x 79mm
4. Lighting Way:Side-emitting
5. Light Source:5050 SMD LED
6. Housing:Die-casting aluminum
7. Surface Color:Silvery
Technical Datas
| Model No. | AL-B1S |
| Input Voltage | 100 - 240VAC,DC12/24V |
| Power | 1.8W,2W |
| Frond Cover | 78.5mm x H55mm |
| Sleeve Size | 71mm x H76mm |
| Color | R/G/B/Y/W/CW/WW/RGB 3in1/RGBW 4in1 |
| Color Temperature | 2700K~6500K |
| LED Chip | High power LED |
| Beam Angle | 80° |
| Dimmable | YES |
| IP Grade | IP65 |
| Certification | CE,RoHS |
| Warranty | 2/3years |
Material & Manufacturing Technique
Housing:12# Die-casting aluminum
Front Cover:12# Die-casting aluminum
Glass:Tempered glass,T=3mm
Light Source:High power LED
Driver:Constant Current Output
Application environment: -20℃-40℃
Power cable: H05RN-F 3x1.0mm² L=0.5M (High Voltage)
Mounting Sleeve:Zinc-coated steel
Model Number Explain
| Model Number | Color | Beam Angle | Frot Cover Shape |
| AL-B1SR02 | Single Color | 80° | Round |
| AL-B1SR05 | RGB 3in1 | 80° | Round |
| AL-B1SR05M | RGB 3in1 with DMX512 | 80° | Round |
| AL-B1SR07 | RGBW 4in1 | 80° | Round |
| AL-B1SS02 | Single Color | 80° | Square |
| AL-B1SS05 | RGB 3in1 | 80° | Square |
| AL-B1SS05M | RGB 3in1 with DMX512 | 80° | Square |
| AL-B1SS07 | RGBW 4in1 | 80° | Square |
Competitive Advantage
1. Die-casting aluminum light housing,good heat-dissipation,long lifespan.
2. High bright 5050 SMD LED,high CRI,beautiful lighting effect.
3. Wall recessed & Ceiling installation,different installation different lighting style.
4. CE & RoHS,Two years warranty,10 years manufacturing and exported experience,Professional quality control and best after-sales service.
Dimension

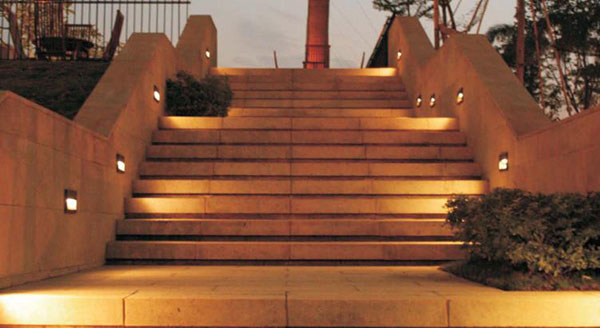

Application Scene
Photoes
Tag
LED deck light,LED stair light,LED step light,LED corner lamp.
