DC 24V 3W LED Underwater Spotlight With 316 Stainless Steel RGB 3 In 1 Color

Brand Name : A.L

Model Number : AL-4C

Certification : CE,RoHS

Place of Origin : Guangdong,China

MOQ : 50pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 2,000pcs per day

Delivery Time : Sample and small order 2-4workdays,bulk order 8-12 workdays

Packaging Details : Yellow Box,Yellow Carton

Power : 2W,3W

Color : Single Color/RGB 3in1

LED Brand : CREE/OSRAM/EDISON

Input : DC24V

IP Grade : IP68

Material : 316 Stainless Steel+Copper

Contact Now

DC24V 3W LED Underwater Light Spotlight With 316 Stainless Steel RGB 3in1 Color

Quick Details

2W 3W power.
IP 68 rating.
Stainless steel SUS316.
15°/30°/45°/60° beam angle
Cree/Osram high power LED
2 years warranty
Single color/RGB 3in1 color

Technical Datas

Model No.	AL-4C
Input Voltage	DC12/24V
Power	1W,3W
Dimension	Φ67.5mm x H85mm
Sleeve Dimension	Φ65mm x H100mm
Color	R/G/B/Y/W/CW/WW//RGB 3in1
Color Temperature	2700K 3000K 4000K 6000K
LED Chip	CREE 1W/3W high power LED
LED Qty	1pcs
Beam Angle	15°/30°/45°/60°
Dimmable	YES
IP Grade	IP68
Housing	316 Stainless Steel
Sleeve	PVC
Round Base	316 Stainless Steel
Weight	0.5Kg
Certification	CE,RoHS
Warranty	2/3years

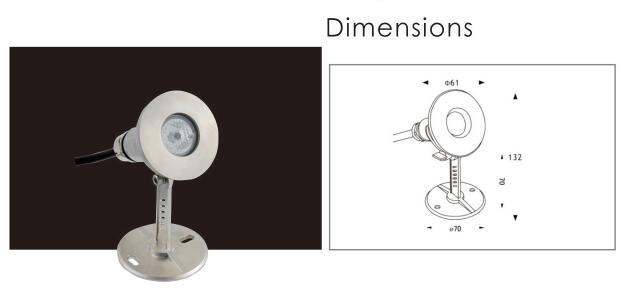

Dimension

DC 24V 3W LED Underwater Spotlight With 316 Stainless Steel RGB 3 In 1 Color

Material & Manufacturing Technique

Housing:	Molding shaped stainless steel sus316#.
Gasket:	EPDM gasket
Glass:	Tempered glass,T=7mm
Lens:	Optional lens,efficiency ≥ 85%
Cable gland:	IP68 PG-9 copper with nickel-coated.
Seal:	Molding shaped silicone seal under the front cover
LED:	High power LED
PCB:	Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk
Driver:	Constant current output, Single color LED=2-circuit output RGB 3in1 LED=3-circuit output
Applicaation environment:	Temperature of water between -20℃-40℃ less than 1m depth
Power cable:	H07RN-F 2x1.0m² L=2m(for single color) H07RN-F 4x0.75m² L=2m(for RGB)
Sleeve:	PVC

Model Number Infos

Model No.	Color	LED Qty	Power	Type
AL-4CR02	Red/Green/Blue/Yellow/White/WW/CW	1pcs	1x 2W	Recessed
AL-4CR05	RGB 3in1	1pcs	1 x 3W	Recessed
AL-4CR05M	RGB 3in1 with DMX	1pcs	1 x 3W	Recessed
AL-4CS02	Red/Green/Blue/Yellow/White/WW/CW	1pcs	1 x 2W	Spotlight
AL-4CS05	RGB 3in1	1pcs	1 x 3W	Spotlight
AL-4CS05M	RGB 3in1 with DMX	1pcs	1 x 3W	Spotlight

Competitive Advantage

Whole lamp is made of 316 Stainless Steel,PVC Sleeve and 316 stainless steel round base,high level quality LED underwaterlight.
With 316 SS stand support frame,lamp lighting beam angle can be adjustbale.
With round base and recessed sleeve,the light can be installed for recessed light and spotlight.
High power CREE & Osram LED,W/WW/R/G/B/Y/RGB 3in1 color optional,meet diversified lighting color change.
H07RN-F trong power cable length can be customzied.
Professional 10 years manufacturing and exporting experience,keep good quality control and good after-sales service

Warm Tip

The 316 Stainless Steel 1W 3W LED Underwater Lights With Recessed Sleeve And Round Base has to be lighted underwater to prevent the lamp from burnning up because of over-heat.Pls don't light it more than 15 minutes out of water!
The LED underwater light is 12V / 24V low voltage,pls don't connect it to 220V / 240V high voltage,this will burn the LED underwater light.
The best height for this LED underwater light lighting is within 1M.
The power cable of this LED underwater light can be customized.
This LED underwater light has very lighting effect for fountain lighting project.

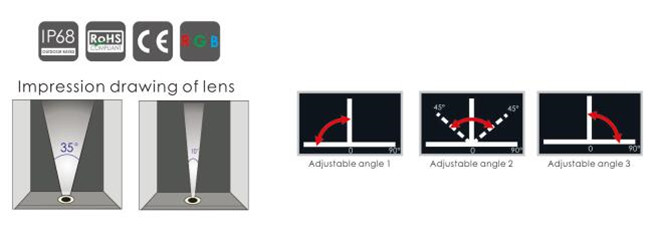

Lens

DC 24V 3W LED Underwater Spotlight With 316 Stainless Steel RGB 3 In 1 Color

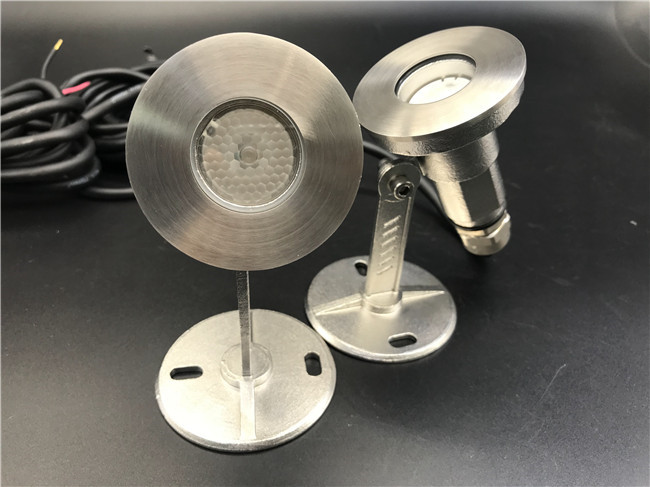

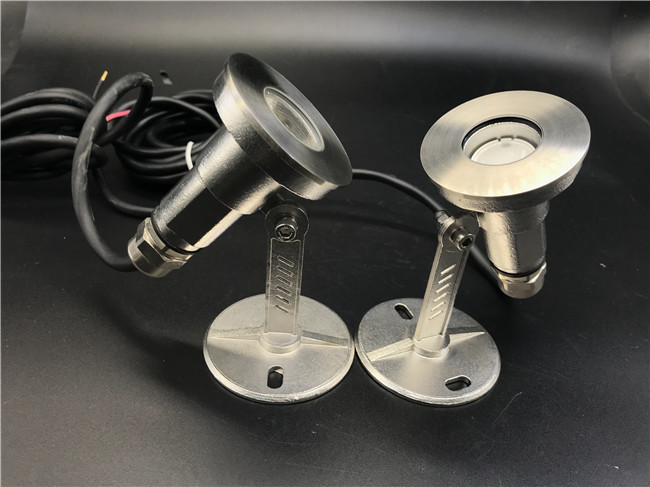

Photo Show

DC 24V 3W LED Underwater Spotlight With 316 Stainless Steel RGB 3 In 1 Color

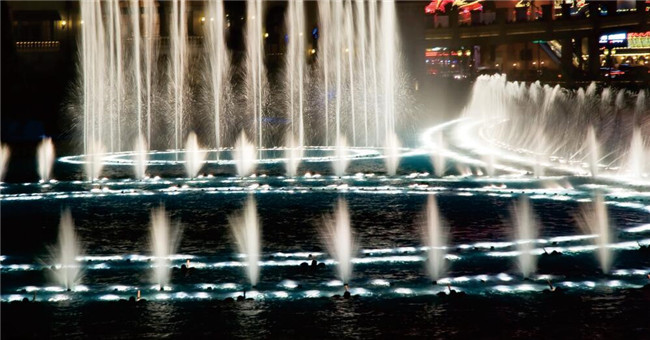

Application

Shopping mall,garden,park,lake,outdoor landscapes,water floor,water stage,fountain,pond,swimming pool

DC 24V 3W LED Underwater Spotlight With 316 Stainless Steel RGB 3 In 1 Color
